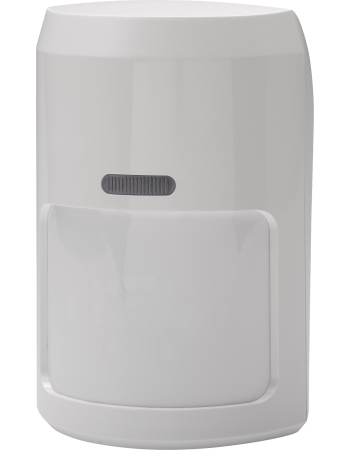

TITAN QD40
Brendi: TELETEK
Kodi: TITAN QD40
Description
QUAD element
PET immunity – selectable 25/40kg
Operating range from 1.5m to 15m
90° coverage area in 54 zones
Digital bidirectional temperature compensation
Excellent white light immunity
RF immunity
Electromagnetic immunity
Reverse polarity protection
| Operating voltage | 9 – 18 VDC |
| Consumption | < 14mA |
| Detection speed | 0.2-3.5m/s |
| White light immunity | 6500 lux |
| RF immunity | 10 V/m; 80 – 2000 MHz |
| Electrostatic immunity | 8 kV |
| Mounting height | 1.5m – 3.6m (2.1m recommended) |
| Weight | 74 g |
| Dimensions | 62x97x50 mm |
| Operating Temperature | -20°C to 50°C |
