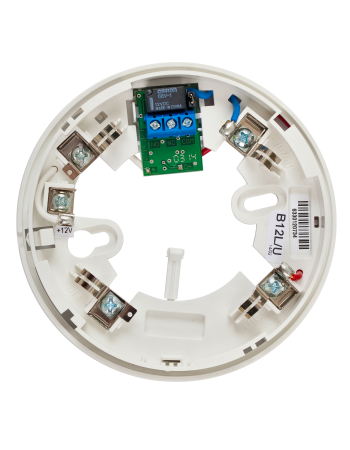

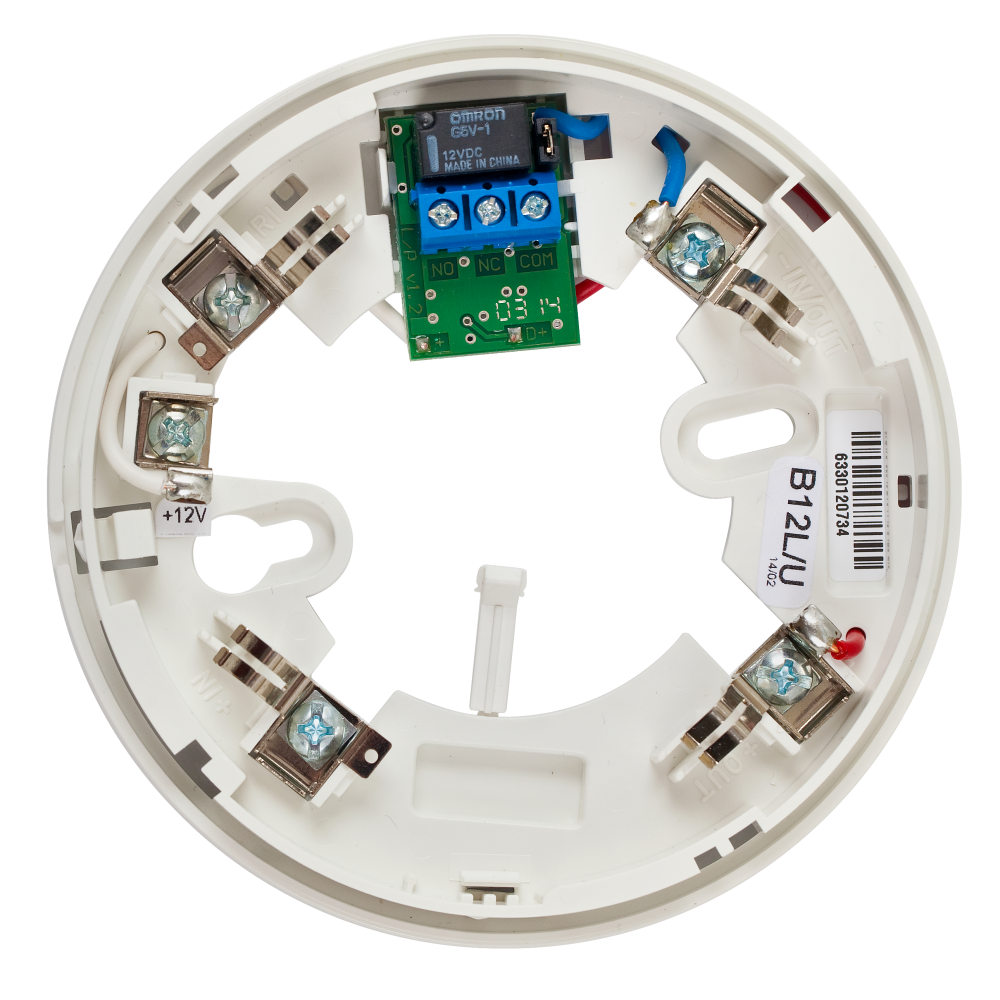

SensoMAG B12L/U
Brendi: TELETEK
Kodi: SensoMAG B12L/U
Description
SensoMAG B12L/U is an alarm base (12V) with relay output.
The base has two operation modes: Latch and Unlatch.
12V
Application in intruder alarm systems
Latched/Unlatched mode
| Power Supply | 10-15V |
| Consumption in stand-by mode | <50μA |
| Consumption in FIRE mode | <25mA |
| Reset time in Unlatched operation mode | 7 – 9 sec |
| Operating temperature | -10°C to +60°C |
| Weight | ~46g |
| Dimensions | 102x11mm |
| Material (plastic), color | ABS, white |
