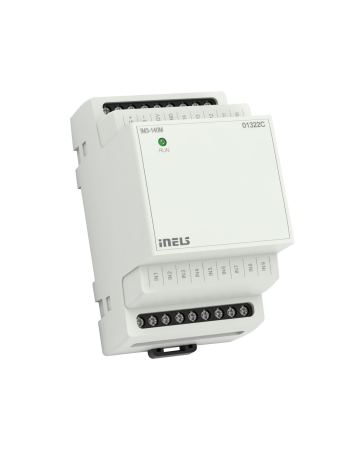

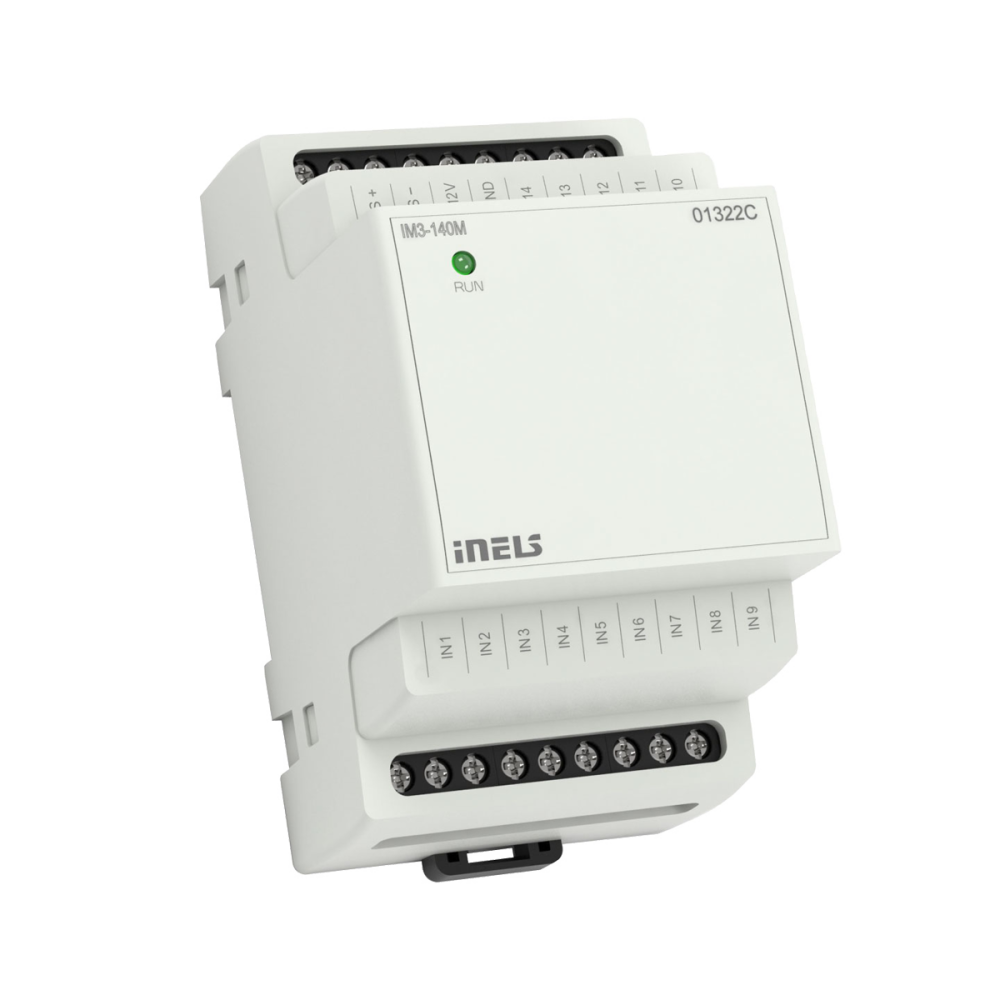

Binary input unit, 14-channel IM3-140M

Binary input unit IM3-140M is designed to connect up to 14 devices with potentialless contact (such as switches,

buttons of other designs, fire and glass detectors and others).

Inputs IN1 - IN7 can be balanced.

Contacts of external devices connected to the inputs of the drive can be NO or NC - Input parameters are confi gured in the software iDM3.

Inputs must be configured as balanced or double balanced - in an internal Electronic security system configurated in iDM3 software.

The unit generates a supply voltage of 12 V DC / 150 mA for powering external detectors, so it can power PIR detectors, fire and gas detectors.

Active use 12 V DC output for powering detectors increases the nominal consumption units from BUS
